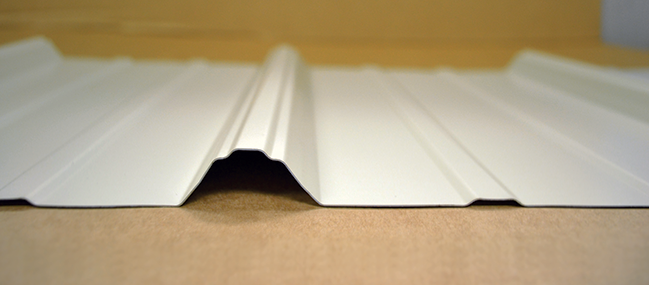

Panel-Loc Plus™ Roofing
Panel-Loc Plus™ gives residential, agricultural, and light commercial projects the protection of steel, with an attractive appearance. It features an extra striation on top of the rib to give it superior durability and protection against leaking. Panel-Loc Plus™ is a low rib 3/4 inch panel, available in 26 and 29 gauge, that provides lasting durable performance. Panel-Loc Plus™ is available in 3 qualities: Standard, Prime, and Ultra.
*Due to screen resolution limitations, product colors may not be exactly as shown.
Panel-Loc Plus™
Panel-Loc Plus is available painted or bare Galvalume® in Ultra 26 ga., Prime 29 ga., and Standard 29 ga. Ultra and Prime panels feature CentralGuard protection and a lifetime paint warranty. Standard panels feature a 40-year paint warranty. All panels are SMP paint system except for Copper Metallic, which is Fluropon® 70% PVDF. Bare (non-painted) Galvalume® and galvanized panels from Central States have an acrylic coating which eliminates using oils during manufacturing, and eliminates fingerprinting and foot marking during installation. The minimum roof slope for the 3/4" Panel-Loc Plus™ is 2 1/2:12. If slopes less than 3:12 are needed, International Building Code (IBC) allows a sealant tape to be used on the laps of the panel.
Panel-Loc Plus™ Colors
*Click on Image to Enlarge
