Prestige Casement & Awning
Prestige windows are packed with features that clearly emphasize performance, while improving the aesthetic appeal of any home. You don’t have to settle for the ordinary. You deserve the
spectacular Prestige Collection from Vinylmax. Prestige windows have a Limited Lifetime Warranty which includes coverage of all hardware, vinyl, glass and screen for as long as you reside in your home.
Prestige Casement & Awning windows proudly feature IntelliGlass high performance glazing system. This efficient combination of Intercept® Warm Edge spacer system and ClimaGuard high performance Low E glass provides superb energy efficiency by reflecting heat back to its source. This keeps your home more comfortable year round.
Features
- Roto X-Drive operating hardware smoothly handles the weight of even the heaviest sashes with effortless, whisper-quiet operation.
- Casement and Awning sashes open a full 90° allowing for maximum ventilation and easy cleaning inside and out.
- Patented casement screens are easily removed or installed locking into place without the use of unsightly clips, tabs or fasteners.
- Single lever lock handle actuates the multi-point locking system with an audible click to signify position.
- Fold-down crank handle nests subtly into the operator housing to prevent interference with window treatments.
- Single master frame for twin and 3 lite units maximizes strength, efficiency and visible light.
Additional Features
- Patented laser-cut gear teeth are hardened for superior strength and a lifetime of maintenance-free operation.
- Fusion-welded, multi-chambered vinyl frame and sash are energy efficient, maintenance-free and last a lifetime.
- Screen frame is color matched to the interior and paired with UltraVue high-performance screen mesh.
- Choose dual or triple pane IntelliGlass high performance insulated glass packages to maximize efficiency in any climate.
- Beveled sash exterior gracefully accents every architectural style.
- Dual and Triple pane glass options are available to maximize efficiency in any climate.
- Interior and exterior SDL packages.
- Choose from 7 Decorative Exterior Paint Color Finishes.
- Tempered, Obscure and STC rated glass options.
- 1-5/8″ wide integral nail fin with 1″ setback for new Construction application.
- Foam frame wrap is available for increased insulation.
- 4-9/16″ or 6-9/16″ white prime extension jamb.
- WOCD field applied “angel locks”.
Window Styles
Awning
Casement

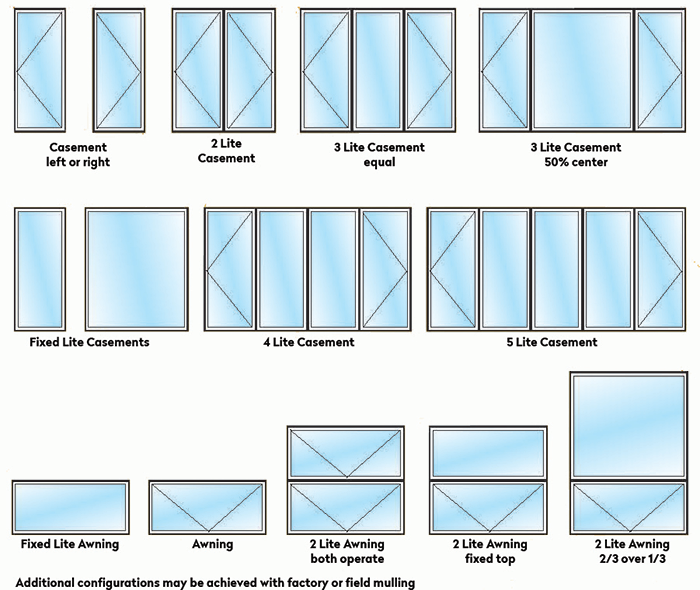

Configurations
Grid Pattern Styles
Colonial
Prairie 6
Prairie 9
Diamond
Grid Profile Styles
Pencil Brass
Flat (White & Tan Only)
Georgian
Pencil Pewter
Glass Packages
The needs of every home are different and with our specialized glass packages you can find the perfect fit. We offer both dual and triple pane glass options and can meet the EPA’s stringent ENERGY STAR® criteria depending on your geographic location.
- Ideal for North and North Central climates
- Glass Panes: 2
- Low-E Surfaces: 1
- Airspace Filling: Argon
- Ideal for Southern and South Central climates
- Glass Panes: 2
- Low-E Surfaces: 1
- Airspace Filling: Argon
- Ideal for Southern and South Central climates
- Glass Panes: 3
- Low-E Surfaces: 1
- Airspace Filling: Argon
-
Ideal for All climates
Recommended - Glass Panes: 3
- Low-E Surfaces: 2
- Airspace Filling: Argon
Click to learn more
Hardware Colors
Fold-down crank handle nests into the operator housing for a clean and uncluttered design that is easy to use.
Antigue Brass
Satin Nickel
Oil Rubbed Bronze
Tan
White
*Click on Image to Enlarge
Color Choices
Solid
White
Tan
Dual Tone
Classic Oak Interior / White Exterior
White Interior / Tan Exterior
White Interior / Clay Exterior
White Interior / Bronze Exterior
Painted Exterior
Tan
Brick
Terra
Bronze
Forest
Clay
Cocoa
*Due to screen resolution limitations, product colors may not be exactly as shown.

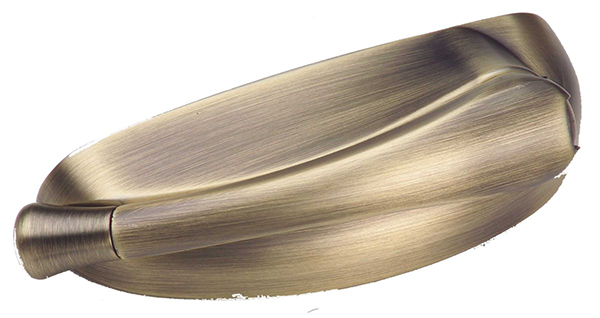

Roto Antique Brass

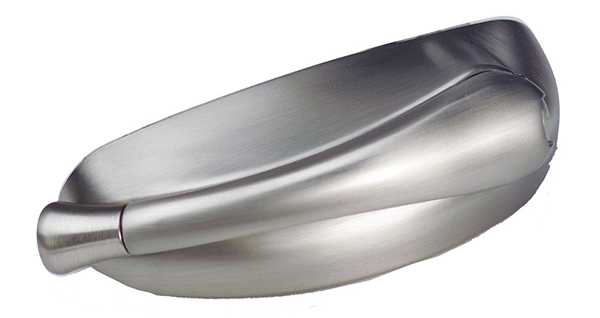

Roto Satin Nickel

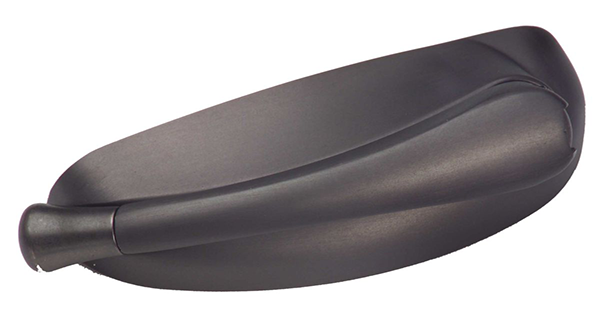

Roto Oil Rubbed Bronze

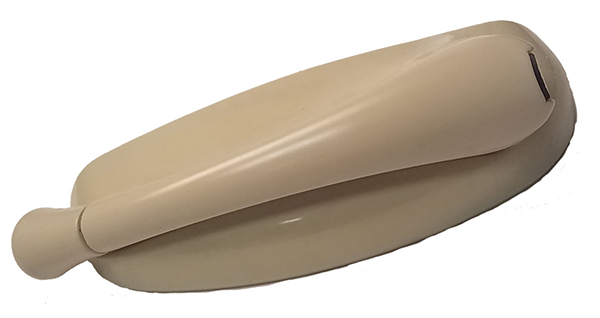

Roto Tan Handle

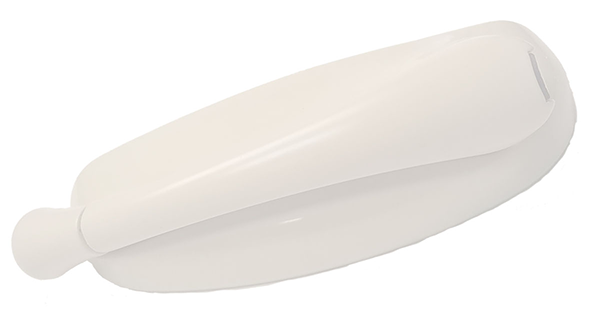

Roto White Handle
